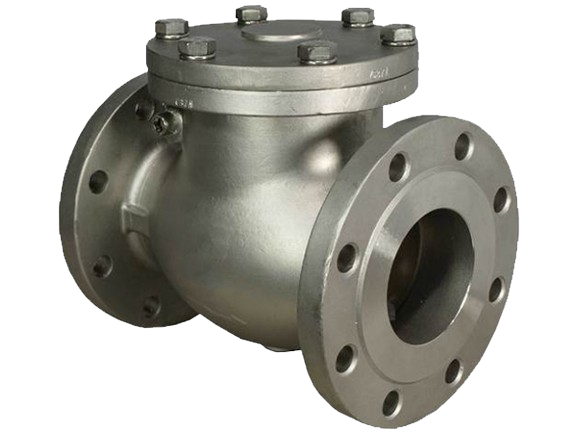

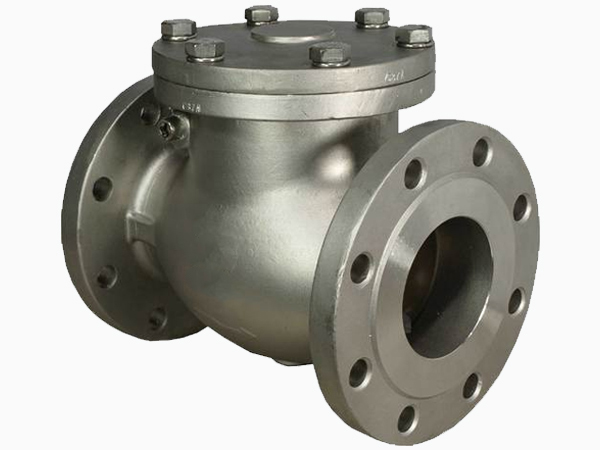

Swing Check Valve
A swing check valve prevent the flow back in the pipeline. When the pressure become zero the flap disc closes the orifice flow-port and back-flow is prevented by the swing check valve.It is a automated valve which is controlled by fluid pressure. The swing check valves allow one-way direction flow only.There is very low pressure drop and turbulence.
Installation of this type of valve must be horizontally. If there is installation of vertically, one should care the disc must be activated by fluid pressure up side and when pressure is zero, it will be closed by gravity pressure.
- Body Type single Thin Plate, Short Type
- Suitable For Horizontal and Vertical Mounting
- Pressure Rating : PN-10/PN-16
- Seat Leakage : Zero Leakage, Tight Shut Off
- Temperature Range : 25°C to + 200°C
- Size Range: 1”to 42”
- Bolted Cover
- Size Range: 2″ to 36″
- Pressure Range: 150LB to 2500LB
- Design STD.: BS1868/ API6D
