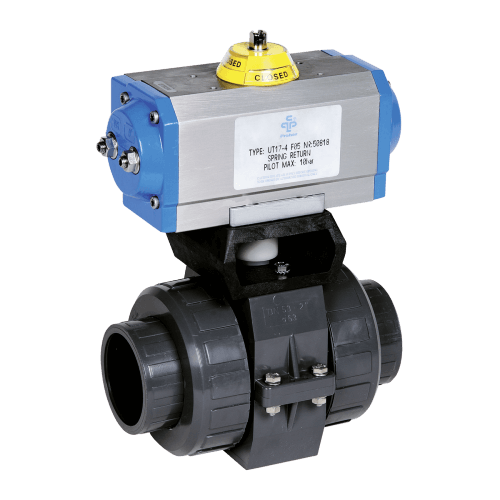

Pneumatic Actuator Operated Butterfly Valve

Known as leading pneumatic actuator operated ball valve supplier, manufacturer and exporter in India, we are engaged in offering wide range of pneumatic actuator operated ball valve. We are client centric company and understand the value of quality parts in your production process. We are developing our each of product using optimum quality raw material obtained from reputed vendor of the industry. With the use of advanced machineries and technology we produce most innovative and quality product to satisfy your industrial requirements. Our each product is examined under strict supervision of our quality experts using cutting edge technologies. Further as a leading pneumatic actuator operated ball valve supplier in India, we make available them as per customer requirement and specification at best market price.

Product Description

Size Range : 1/2" to 20"' Screwed / Flange / Triclover / Socket weld

Actuator

Type Rack and Pinion Type
Actuation Double Acting / Single Acting (Spring Return)
Mounting Std. ISO 5211 An International Standard
Pneumatic Connections NAMUR Standard

Valve

Body ASTM A216 Gr .WCB /ASTM A351 Gr .CF8 /CF8M
Ball ASTM A351 Gr .CF8 /CF8M
Stem Stainless Steel AISI 304/AISI 316/AISI 410
Gland Stainless Steel AISI 304/AISI 316/M.S .
Seat Packing PTFE (Gland Filled ,Carbon Filled ,Teflon -Optional in case of high Temperature )
End Connection Screwed to -BSP /NPT /Socket Weld Ends to ANSI )B 16.11 Flange to -ANSI B 16.5Class 15/300 Table -D,E ,F ,(On Request ) Triclover Ends -(On Request ) Socket Weld -(On Request
