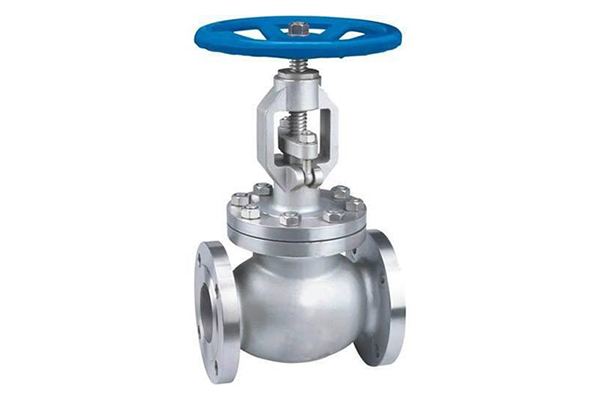

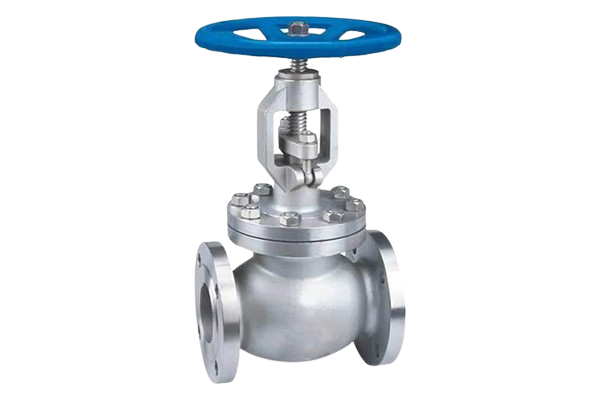

Globe Valve
As one of the noted Industrial Valves Manufacturers in India our vision is to design and manufacturer globe valves that meet international quality and safety norms. We have maintained such high standards in designing Globe Valve as well. This linear motion valve can stop, start or regulate the flow of fluids in desired direction. There is a right angle tighter seal between the seat and the disk to minimise leakage. We offer our Globe valves in different models and with varied features to suit different industrial needs.
These are designed and developed in agreement with the international quality standards. Globe Valves that are exactly engineered using the prime quality raw material. We offer modified Globe Valves as per the requirements of the clients.
- DISC
For valve with NPS < 2 are of disc solid and for above 2″ Forged or Cast disc is used. - BODY BONNET CONNECTION
Bolted Bonnet Design from Class 150 to 600, Pressure Seal Deign for Class 900 & Above - STEM
Stem is rotating part. Stems made from one piece and ACME threaded and smooth machined with surface finish to maximize packing seal for low fugitive emissions.
- SEAT FACES
Seat faces lapped for smooth finish and superior sealing. Optional renewable threaded seat or welded seats are as per customer specification. - BACK SEAT
All our globe valves have back seat design, carbon steel valves is fitted with removable back seat. For stainless steel integral machined with bonnet. - GASKET
Stainless steel + flexible graphite spiral wounded gasket is used for 150 to 600 class, ring joint gasket is also optional for class 600 valves, for class 900 and above pressurized seal design is used.
Product Description
| PRODUCT RANGE | SIZE | PRESSURE CLASS |
| Bolted Bonnet Globe Valve | 15 NB to 400 NB | 150# to 600# |
| Forged Steel Globe Valve | 6 NB to 50 NB | 800# to 2500# |
| Pressure Seal Globe Valve | 50 NB to 600 NB | 900# to 2500# |
TECHNICAL DATA
| Bolted Bonnet Globe Valve | BS 1873 |
| Forged Steel Globe Valve | API 602 |
| Pressure Seal Globe Valve | ASME B16.34 / BS 1873 |
| End to End Dimensions | ASME B16.10 |
| Flanged End Dimensions | ASME B16.5 |
| Butt Weld End Dimensions | ASME B16.25 |
| Socket Weld End Dimensions | ASME B16.11 |
| Valve Inspection & Testing | API 598/ BS 6755 Part-I |
| Visual Inspection | MSS SP 55 |
| Non Destructive Test (RT, UT, MT, PT) | ASME B16.34 |
| Pressure – Temperature Rating | ASME B16.34 |
