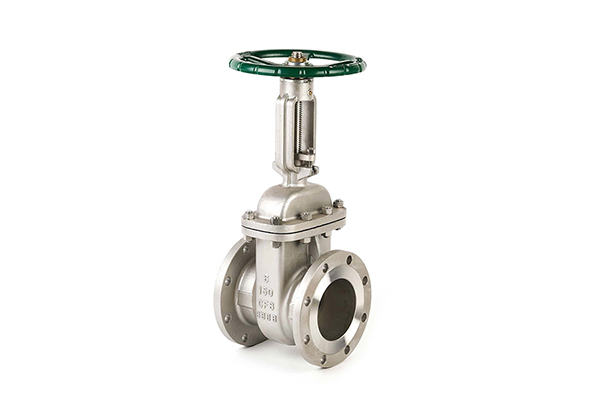

Gate Valve
Hayat Valve brings you a comprehensive range of robust industrial valves. We have established ourselves as the leading Gate Valve Manufacturer India offering unmatched quality, durability and best in the market pricing. The gate valves that we design and manufacture have various industrial applications and can be customized to meet the specific needs of our clients.
As a trusted Industrial Valves Manufacturer we are focused on designing valves of various kinds that are extremely tough and safe to be used under any conditions. Our Gate Valves are designed as bi-directional allowing the flow in either direction. It is ideal for any industrial application where minimum pressure loss and a free bore is required. Our Gate valves can be used for both fluids and gases of various viscosity, pressure and temperature. We use the highest grade of steel and components to build our valves.
OTHER AVAILABLE OPTIONS FOR GATE VALVES
- Alternate trim materials
- Locking arrangement
- Stem Extension
- Bypass, drain and other auxiliary connections
- Chain wheel, Gear, Electrical & Pneumatic actuator operated
- NACE service, Hydrogen service
Product Description
TECHNICAL DATA
| Bolted Bonnet Gate Valve | API 600 |
| Forged Steel Gate Valve | API 602 |
| Pressure Seal Gate Valve | ASME B16.34 / API 600 |
| End to End Dimensions | ASME B16.10 |
| Flanged End Dimensions | ASME B16.5, ASME B16.47-A & B |
| Butt Weld End Dimensions | ASME B16.25 |
| Socket Weld End Dimensions | ASME B16.11 |
| Valve Inspection & Testing | API 598/ BS 6755 Part-I |
| Visual Inspection | MSS SP 55 |
| Non Destructive Test (RT, UT, MT, PT) | ASME B16.34 |
| Pressure – Temperature Rating | ASME B16.34 |
| PRODUCT RANGE | SIZE | PRESSURE CLASS |
| Bolted Bonnet Gate Valve | 15 NB to 900 NB | 150# to 600# |
| Forged Steel Gate Valve | 6 NB to 50 NB | 800# to 2500# |
| Pressure Seal Gate Valve | 50 NB to 600 NB | 900# to 2500# |
