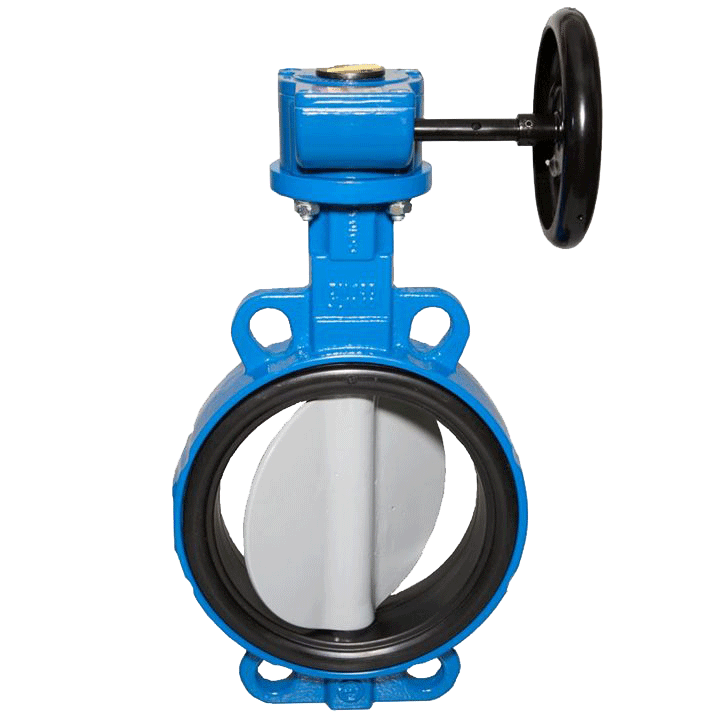

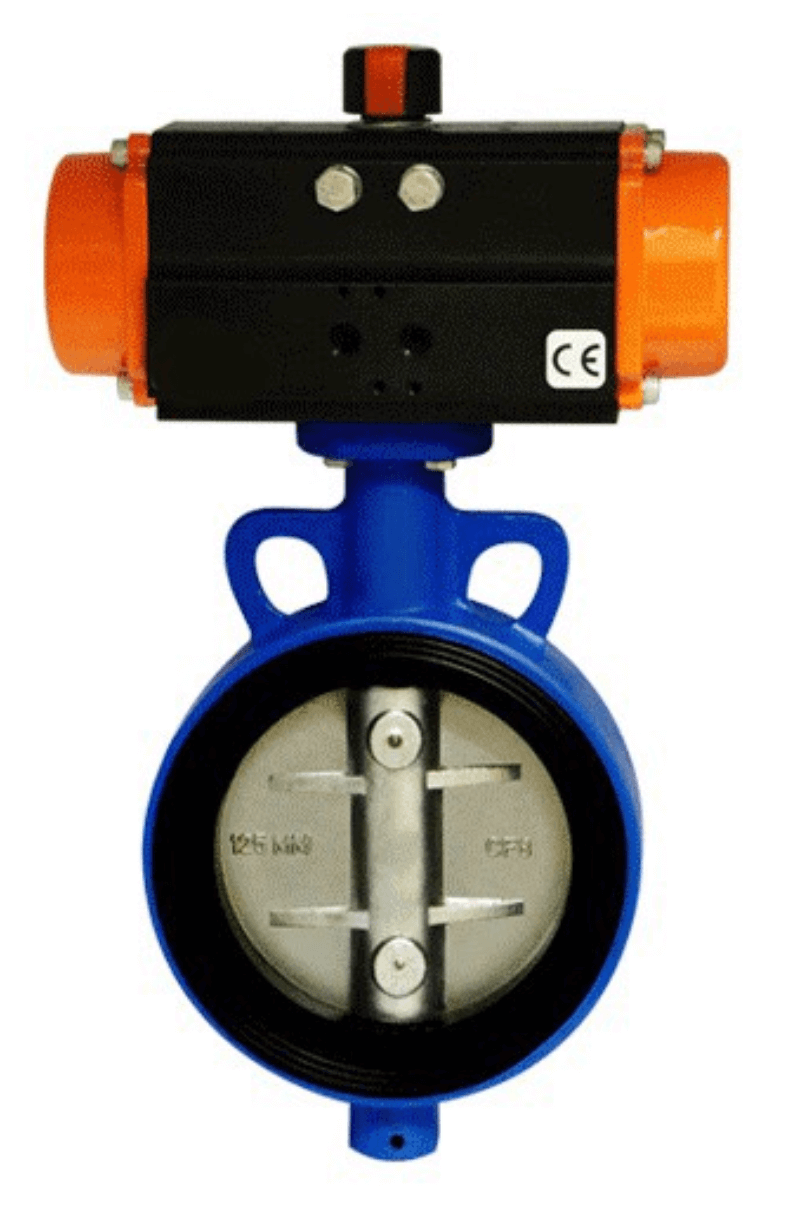

A HayatValves offers INVESTMENT CASTING Cast Iron (CI), Cast Steel (WCB), and also SS304 (CF8) Body with CF8 / CF8M / CF3M Disc BUTTERFLY VALVE with On-Off and Modulating Type, Pnuematic as well as Electric Operated.
| Body | CI / DI / WCB / CF8 |
| Disc | Sg Iron / CF8 / CF8M / CF3 / CF3M / Powder Coated |
| Seat | EPDM / Nitrile / PTFE |
| Design | Moulded / Replaceable Muffler type |
| Press. Rating | PN10 / PN16 |
| Temp. Range | -20°C to 80°C |
| End | Wafer End / Lugged Type / Double Flange |
Cooling Water, Air & Gas, Slurry or Powder, Vacuum Service, Wastewater Treatment, Fuel Handling, Food Processing, Pharmaceuticals Application.
| YDRO PRESSURE TEST | OPERATING PNEUMATIC TEST | |
| BODY | SEAT | MIN. 3.5KG/CM2 |
| 300PSIG | 228PSIG | MAX. 7KG/CM2 |

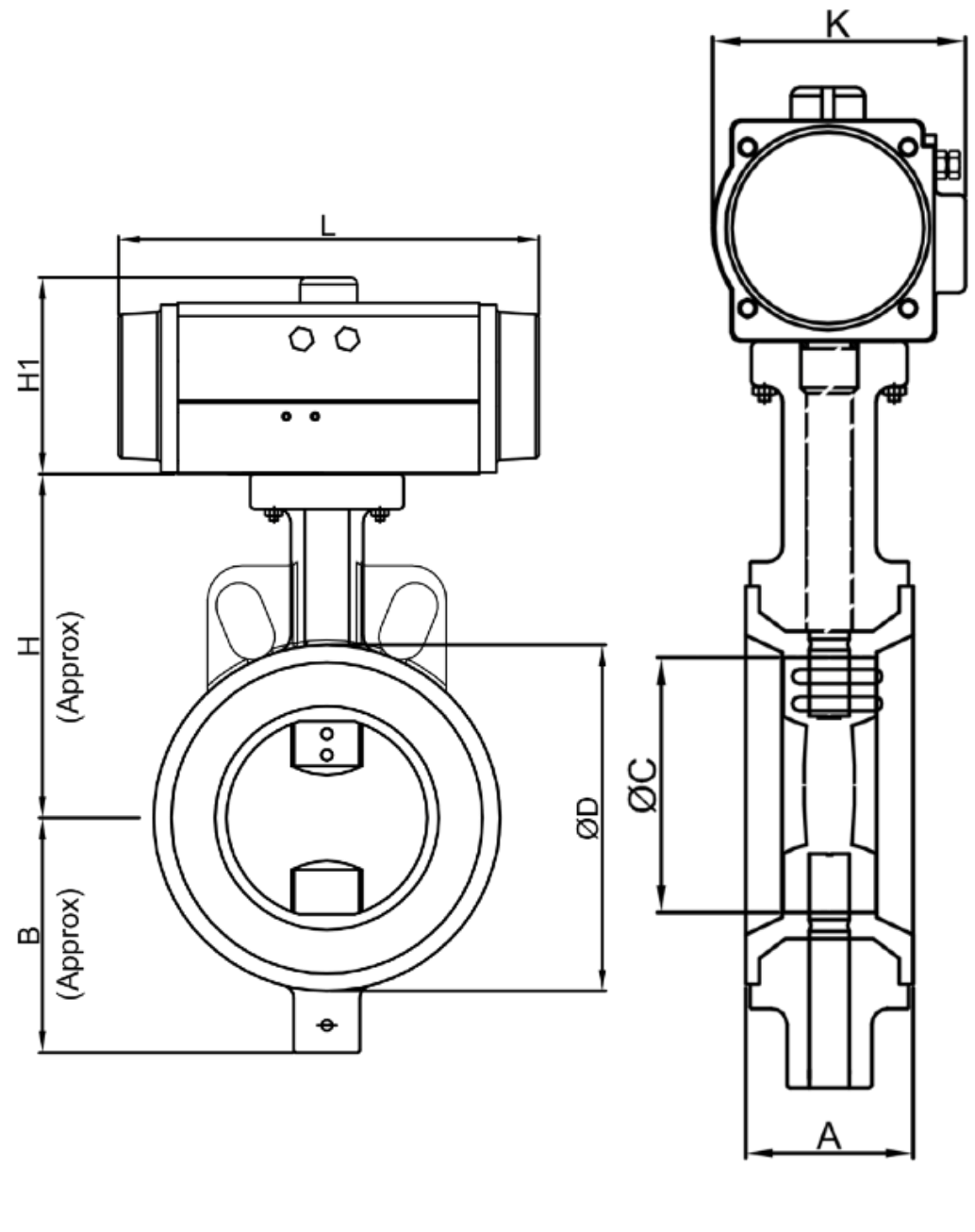

| Size(mm) | A | B | ØC | ØD | H | L | H1 | K | Approx.Weight |
| 40 | 33 | 60 | 38 | 80 | 105 | 136 | 92 | 62 | 2.200 |
| 50 | 43 | 60 | 48 | 90 | 115 | 168 | 102 | 73 | 3 |
| 65 | 46 | 65 | 63 | 105 | 120 | 168 | 102 | 73 | 3.600 |
| 80 | 46 | 75 | 76 | 122 | 130 | 168 | 102 | 73 | 4.200 |
| 100 | 52 | 92 | 100 | 147 | 150 | 217 | 114 | 84 | 6.100 |
| 125 | 56 | 105 | 125 | 175 | 155 | 232 | 127 | 93 | 8.200 |
| 150 | 56 | 120 | 150 | 200 | 175 | 271 | 135 | 105 | 10.850 |
| 200 | 60 | 150 | 201 | 255 | 205 | 293 | 152 | 122 | 16.600 |
| 250 | 68 | 190 | 240 | 320 | 255 | 405 | 181 | 149 | 32.500 |
| 300 | 78 | 225 | 290 | 375 | 285 | 487 | 322 | 226 | 35.500 |
